VLS II Boost Analog Gauge
VLS II Boost Analog Gauge
Specs
Specs
- 52mm diameter analog gauge
- 30 inHG to 45 PSI reading
- Zero-friction brushless motor
- Aluminum front bezel
- Aluminum mounting ring
- External remote included
- White LED backlighting
- Optional red LED backlighting
- LED brightness adjustment
- Peak/hold function w/ warning beep
- Includes boost sending unit
- Daisy chain connection

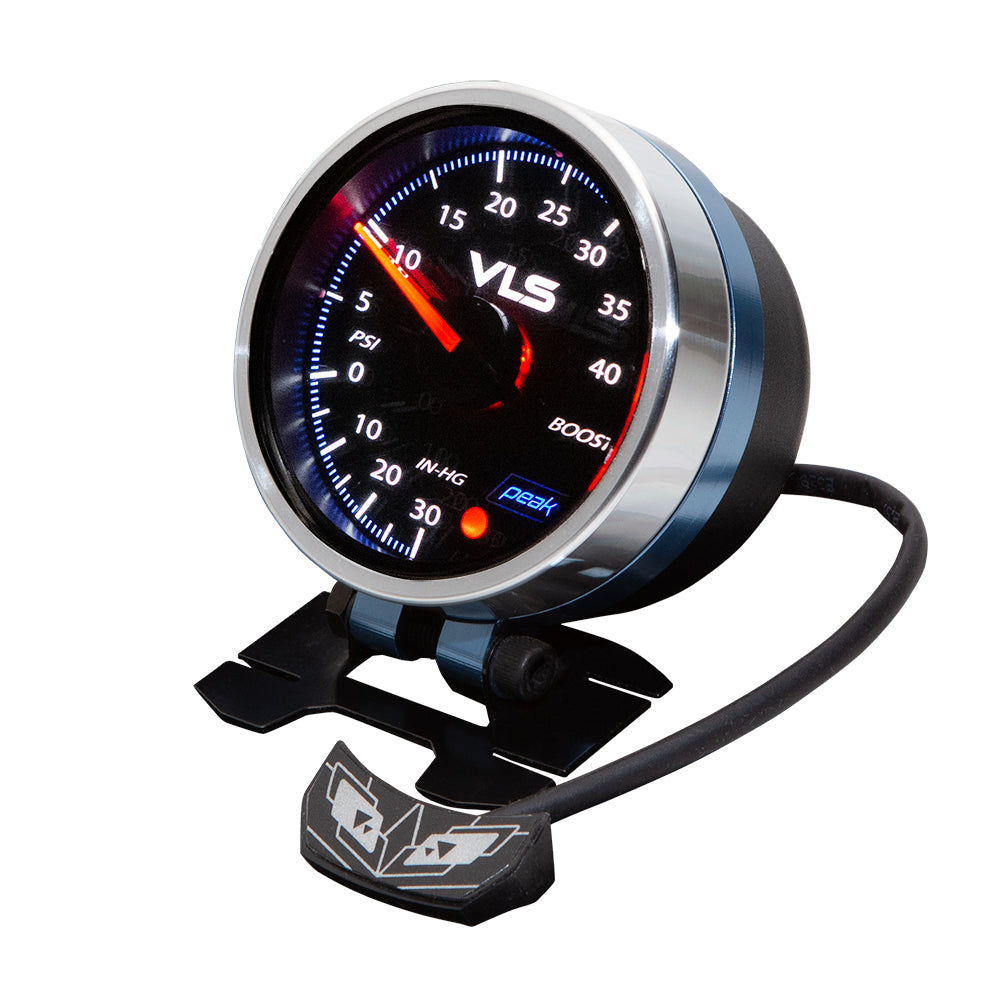

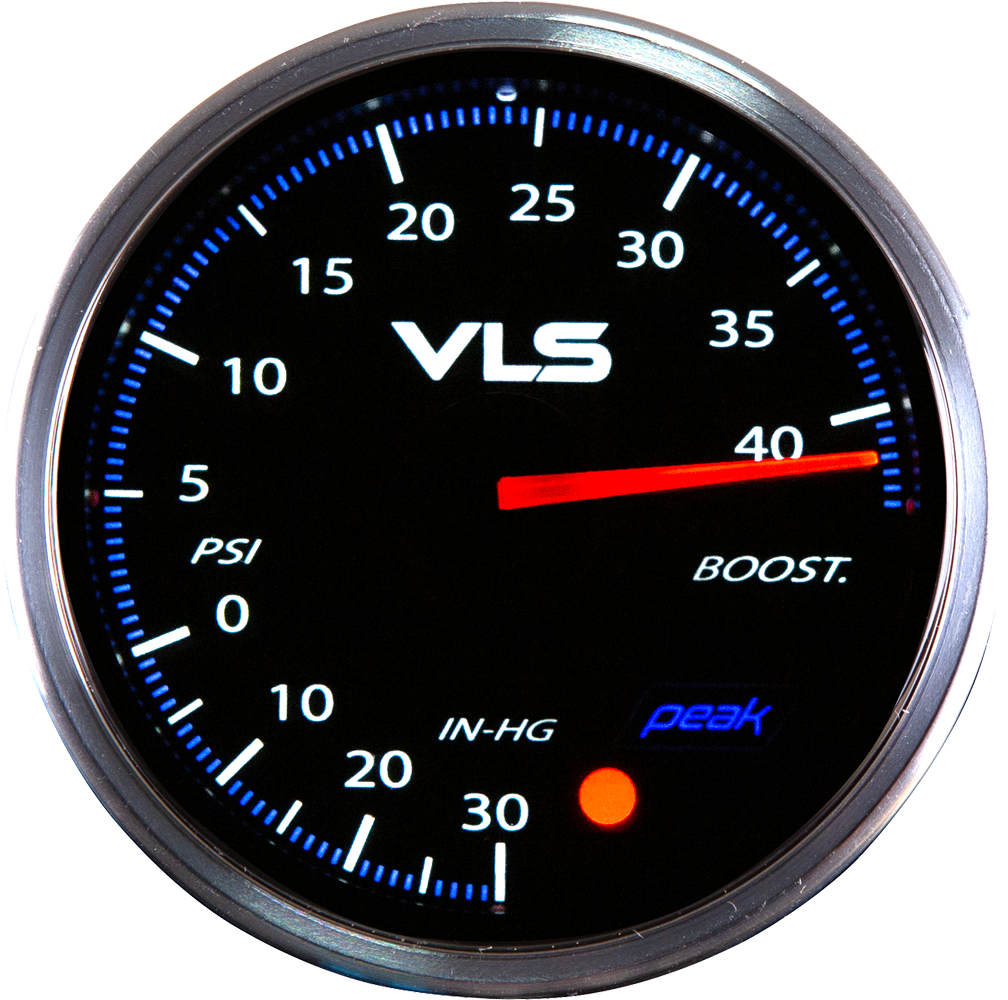

The Revel VLS II Boost analog gauge monitors both vacuum from 30 inHG and boost pressure up to 45 PSI. The new brushless motor provides quiet and smooth operation for the utmost accurate reading. The included external remote controls functions such as peak/hold setting, choosing from two LED backlight colors, and their LED backlight brightness levels. This kit is included with the boost sensor and all the necessary wiring harnesses for a simple installation process.
The Revel VLS II Boost analog gauge is daisy-chain compatible with the VLS II Water Temperature analog gauge, VLS II Oil Temperature analog gauge, and VLS II Oil Pressure analog gauge.
*VLS II gauges are daisy chain compatible only with VLS II analog gauges.
Brushless Motor & Two LED Backlight Colors
New brushless motor provides smooth, quiest operation and effectively increases speed output for quick and accurate readings up to a ultra high speed of 1200 rad/s. The inner processor quickly operates the indicator to reflect the real-time vehicle status.
By using the included external remote,
the backlighting colors can be set to either
white backlighting or red backlighting
and LED brightness can also be adjusted from 6 levels of brightness.
Aluminum Front Bezel & Aluminum Mounting Ring
The gauge features an aluminum bezel for a sleek finish and the unique mounting ring allows the gauge to be mounted on the included universal stand or other mounting custom mounting brackets.
The Revel VLS II analog gauges can fit into any standard 52mm gauge pods.

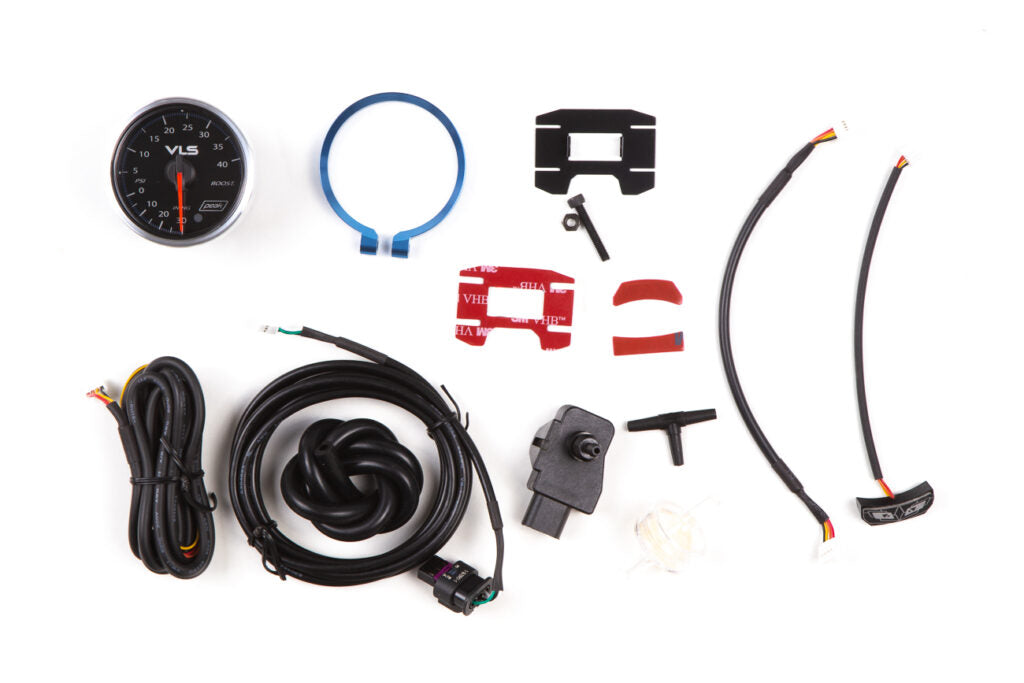

Parts Included
All Revel VLS II gauges are packaged with the associated sensor, mounting ring, remote and all necessary wiring.
- (1) Boost Gauge (52mm)
- (1) Power Harness
- (1) Daisy Chain Harness
- (1) Boost / Vacuum sensor and wiring harness
- (1) External Remote
- (1) Mounting Ring
- (1) Universal Mounting Base
- (3) 3M double sided tape
- (2) Washers
- (1) Nut
- (1) Mounting Bolt
