Radium Primary Top Feed Conversion Mazda 13B

The fuel rail has three ports that are tapped for 8AN ORB.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

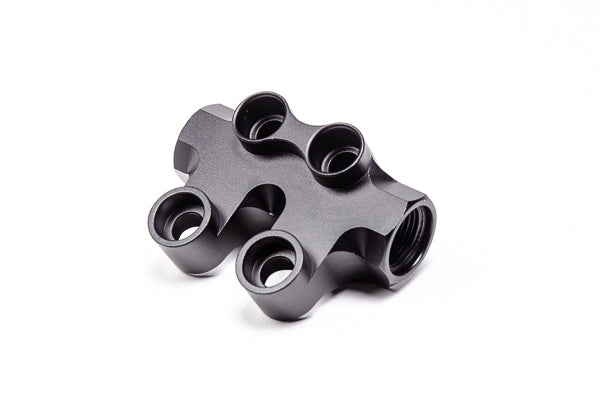

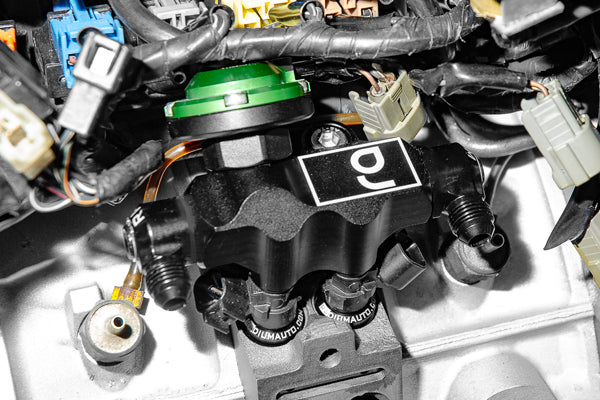

The Radium Engineering high flow primary fuel rail is for the 13B-RE and 13B-REW rotary engine found in the 1990-1995 Mazda/Eunos Cosmo and 1992-2002 Mazda RX7 FD3S. The aluminum fuel rail is anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements.

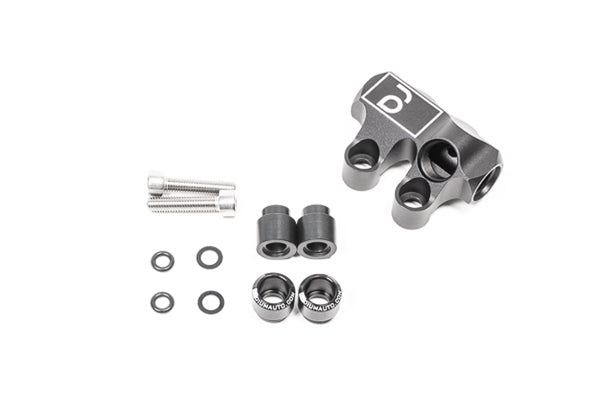

The included 14mm lower injector seats (shown above) were designed specifically to be compatible with or without the OEM diffusers in place. They feature FKM O-rings making them suitable for boosted applications.

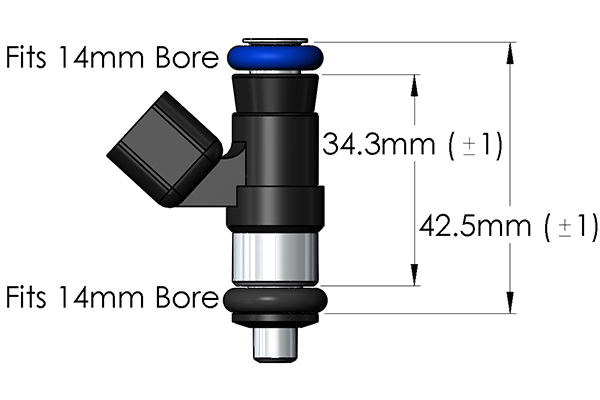

Below are some of the many fuel injectors that are a direct fitment with this fuel rail:

Injector Dynamics ID1050-XDS-34-14-14
Injector Dynamics ID1300-XDS-34-14-14
Injector Dynamics ID1700-XDS-34-14-14
Injector Dynamics ID2600-XDS-34-14-14

NOTE: Fuel Injectors are NOT included and must be purchased elsewhere.
