Radium Fuel Rail Honda B-Series
Radium Fuel Rail Honda B-Series
The fuel rail ports are tapped for 8AN ORB and 1/8 NPT.

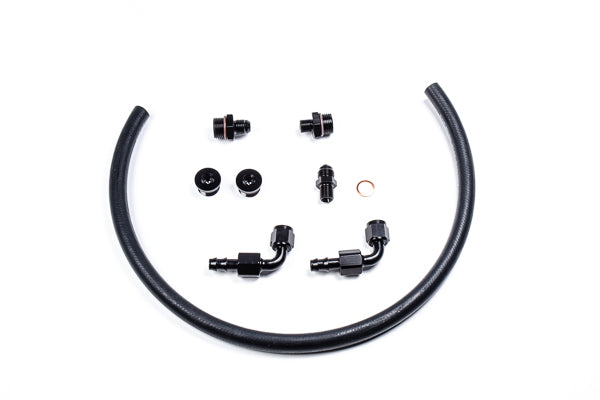

The plumbing kit includes the items shown in the image below and allows easy hookup to the factory feed line. It is intended to be used with the factory pressure regulator, but can also work with an aftermarket regulator.
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

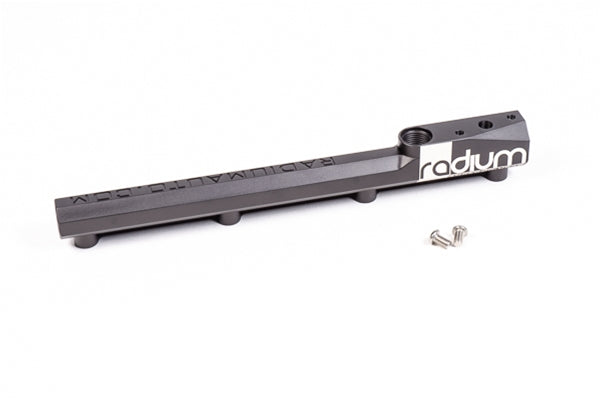

Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from 6061 aluminum, anodized, and laser etched for a high quality surface finish. Like the OEM fuel rails, the injector bores are 11mm ID so factory injectors, or any equivalent aftermarket injector, can be used.

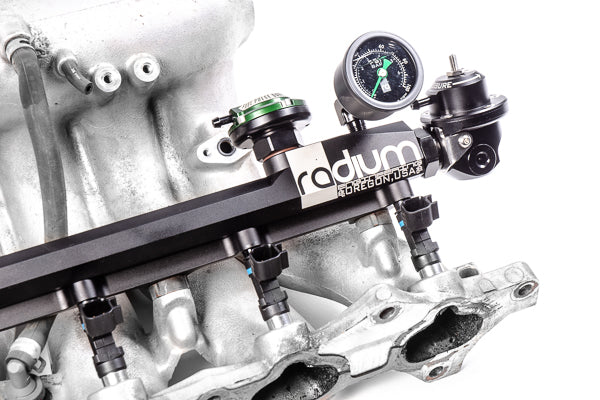

There is a provision to reuse the OEM fuel pressure regulator (FPR). If not using the OEM FPR, there will be an open 1/8NPT port that can be used for ancillary sensors, or it can be plugged.

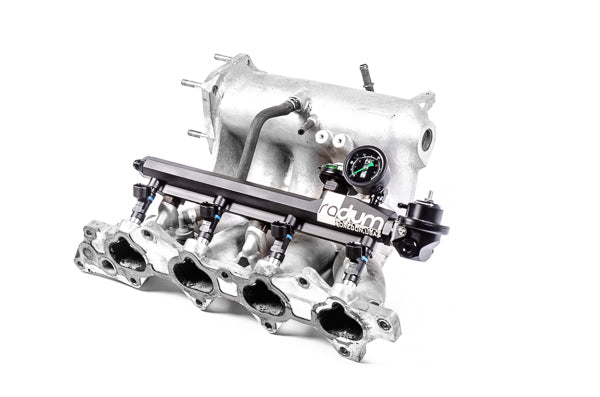

The kit is compatible with all fuel types including popular alcohol mixtures such as E85. The fuel rail mounts using the OEM studs, nuts, and insulating spacers.
