Radium FPRD-RA, Fuel Pressure Regulator Damper

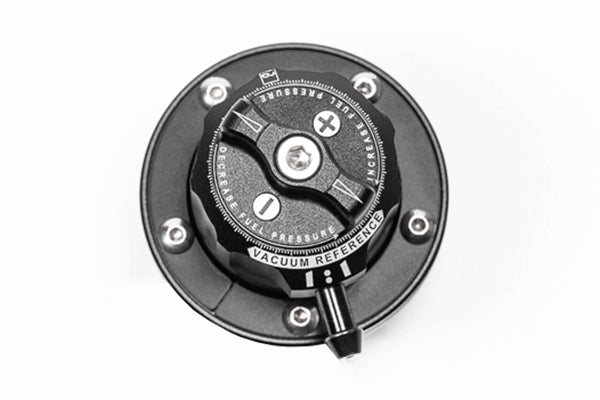

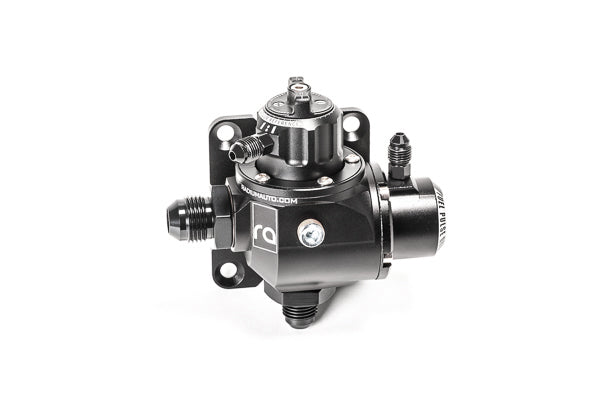

The Fuel Pressure Regulator Damper-Rotating Assembly (FPRD-RA) is the ultimate solution for consolidating critical fuel system components into a high-flow package. It is a fully functional high performance pressure regulator with a unique built-in fuel pulse damper.

With years of track and bench testing data, the RA-series regulators have been refined to optimize pressure management. A newly designed single stainless steel return orifice generates laminar flow that enhances stability control.

Minimum Pressure: 18.5psi (1.3bar)
Maximum Pressure: *N/A
*This is rhetorical. The maximum pressure is dependent on the relief valve inside the pump or the maximum current the fuel pump controller allows.

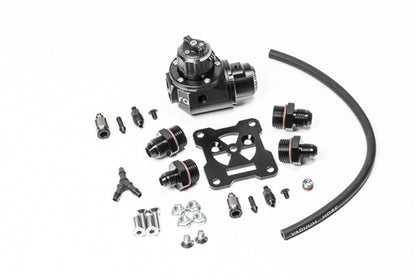

INCLUDED
-Main Rotating Assembly with Damper
-Mounting Bracket with M6x1mm Hardware

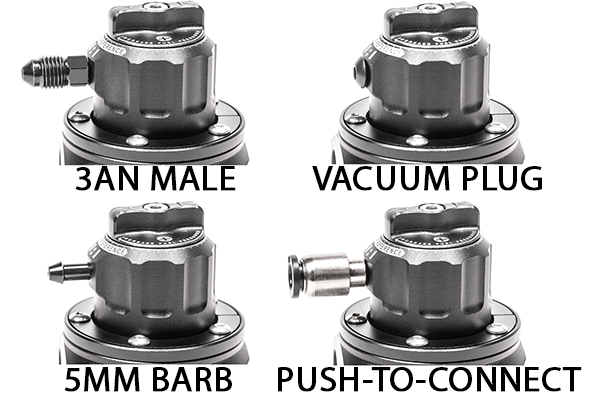

-5mm Barbed Vacuum Fitting (x2)
-Vacuum Plug Fitting, Returnless (x2)
-1/4" Push-To-Connect Fitting (x2)
-3AN Male Vacuum Fitting (x2)
-6AN male Adapter (x2)
-8AN male Adapter (x2)
-1/8" NPT Port Plug
-Vacuum Hose Y-adapter
-Vacuum Hose, 5/32" ID
