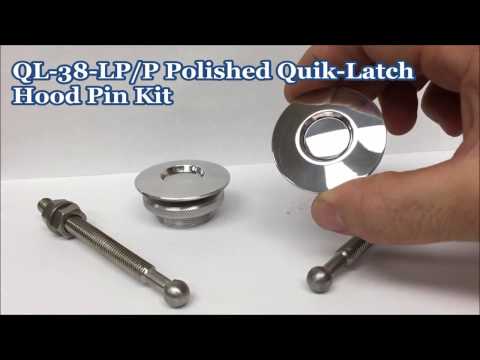

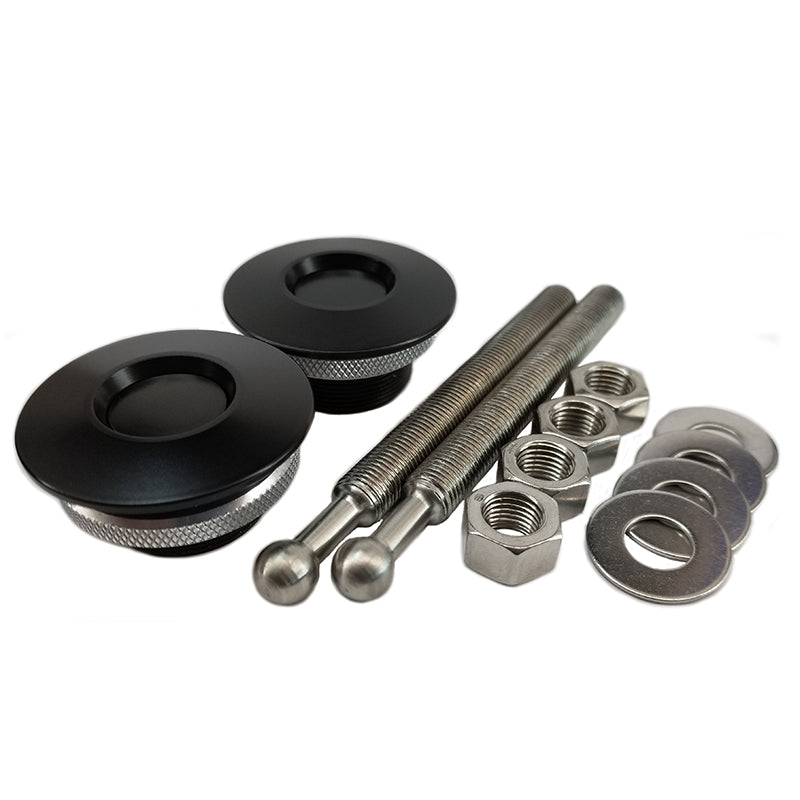

Quik-Latch Hood Pin Kit Low-Profile Series QL-38

Specifications:

• Materials 6061 T6 Aluminum / 303 Stainless Steel
• Holding Force: 500lbs per latch
• Weight: 3.2 ounces
• Height: .875 inch (22mm)
• Height Below Mounting Flange: .750 inch (19mm)
• OD of the latch mounting flange:  1.75 inch (44.5mm)
• Thread size of latch body: 1 1/8 x 24 UNEF
• Hole size required to mount latch: 1.25 inch (32mm)
• Pin dimensions: 3/8" ball with 3/8 x 24 thread
• Retaining Ring: 1.50 inch (38mm) OD x .25 inch (6.4) thickness
• Minimum distance from top of mounting surface to mounting point: 1.125 inch  (28.50 mm)
• Maximum distance from top of mounting surface to mounting point: 3.50 inch (88 mm)
• Maximum mounting angle: 18 degrees
• Distance needed to engage pin into latch: .687 inch (17.5mm)
