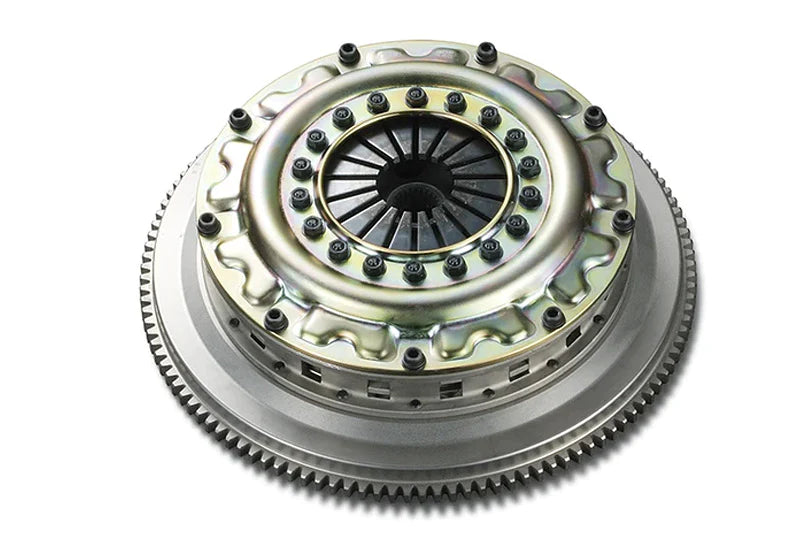

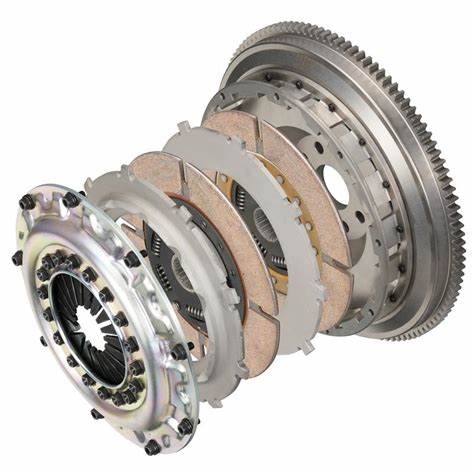

OS Giken Mazda RX7 FC3S Twin Plate Clutch - TS2B

OS Giken Mazda RX7 FC3S Twin Plate Clutch - TS2B

Regular price $1,500.00 USD
Regular price Sale price $1,500.00 USD
Sale Sold out
Shipping calculated at checkout.

Specs

System: Push
Damper: None
Type: Pressed Steel Cover
Number of Discs: Twin
Disc Outer Diameter: 204mm
Torque response Nm (kgf/m): 9,800 (1,000)

Pictures for Representation only, ACTUAL PRODUCT MAY VARY
Counterweight not included, required for installation.
The TS Series clutch lineup is a great entry level start for moderate increase in power. This clutch is very easy to drive in single, twin, or triple plate applications while providing a fairly stock pedal pressure. These come in many disc sizes (A,B,C) depending on the type of performance build you are looking to do.

A Disc Size = 184mm
This disc size is primarily designed for your naturally aspirated build and/or supercharged. Single disc torque 250 lbs ft. Twins 400 lbs ft.

B Disc Size = 204mm
The B size disc is the start for turbocharged applications. Some applications cannot allow for a larger disc size and so this would be considered the first step for turbo cars. Single disc torque 300 lbs ft. Twins 550 lbs ft.

C Disc Size = 215mm
C sized clutch discs are our largest discs available for the TS series lineup. This would be your heavy hitter type clutch. Single disc torque 350 lbs ft. Twins 750 lbs ft.
