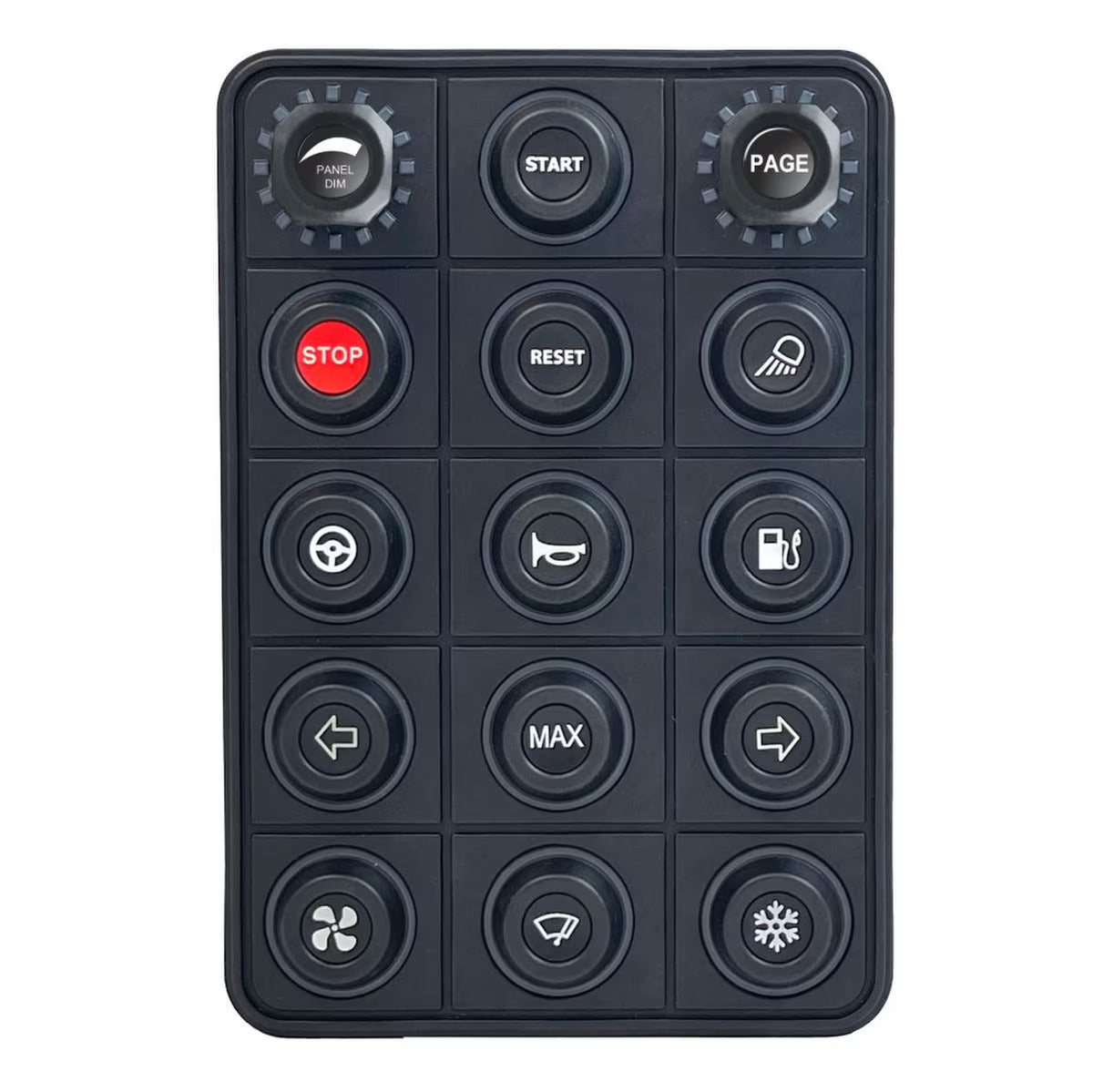

Link CAN Keypad 15 Button + 2 Rotary Encoders

Link CAN Keypad 15 Button + 2 Rotary Encoders

Regular price $599.00 USD
Regular price Sale price $599.00 USD
Sale Sold out
Shipping calculated at checkout.

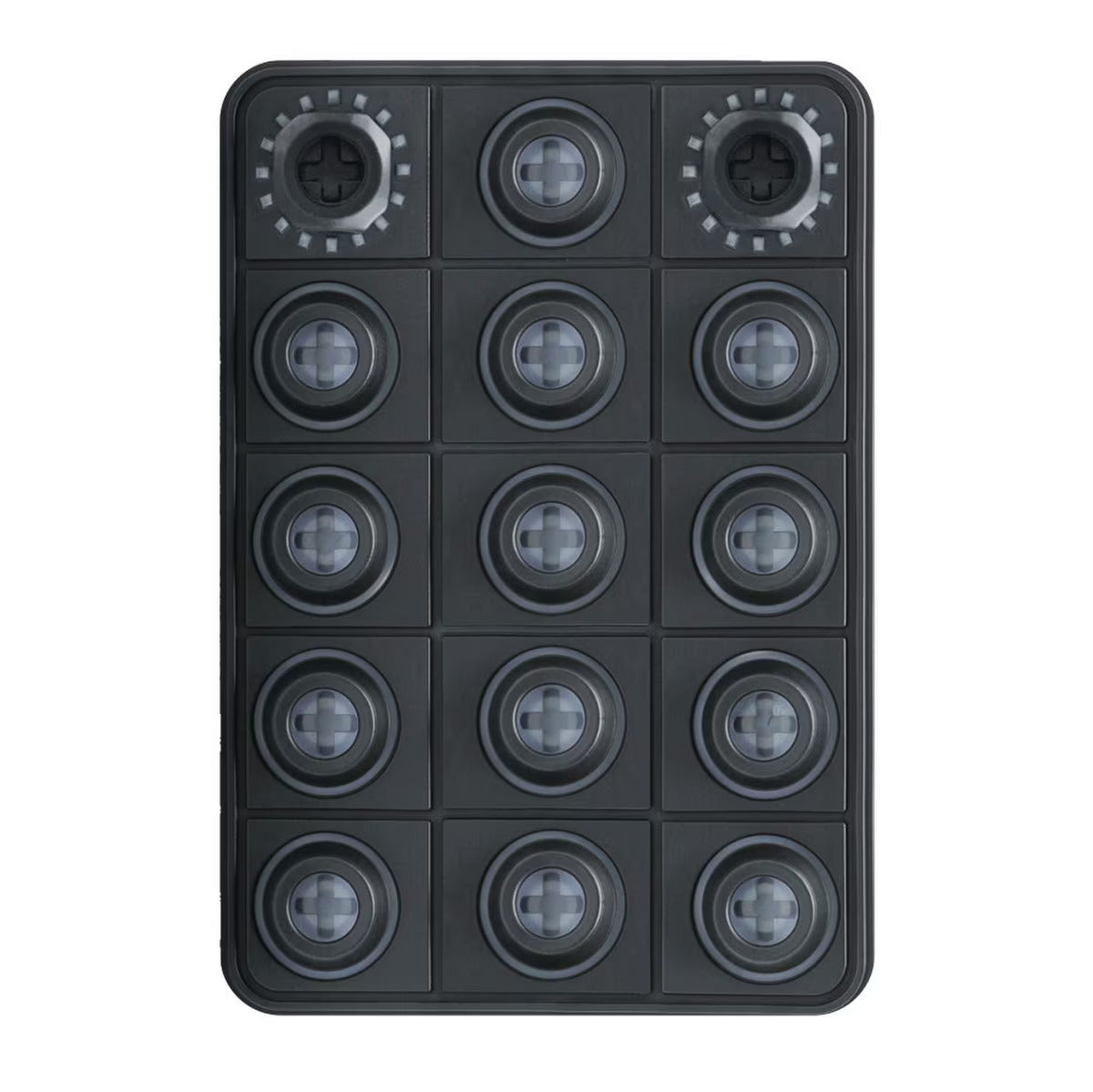

Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.

Rugged 15 button CAN Keypad with interchangeable 15mm inserts (sold separately). Two rotary encoders with 16 Blue indicator LEDs each. Four additional analog inputs allow additional sensors/switches to directly connect to the CAN Bus network through the keypad. The compact layout and inclusion of the rotary encoders and analog inputs allow for significant dash space saving while massively expanding functionality.

  • 15 Buttons and 2 Rotary Encoders (push enabled, buttons
    can function independent to rotary encoder)
  • 4 Analog Inputs for additional Sensors or Switches
  • CAN Configurable with G4X/G5 PC Link – Change button
    LED backlight colour, individual button indicator ring
    colour, programmable to show change in status, flashing
    option, multiple modes including momentary, latched
    and toggle.
  • CAN Bus Communication back to Engine Management
    System/PDM
  • 16 Blue LED Lights on Rotary Encoders while all 13
    Pushbuttons Buttons have customisable RGB LED Rings
  • Compatible with all Link G4X and G5 ECUs
  • Customizable Button Inserts – The replacement system
    for individual inserts makes modifying the keypad layout
    simple and economical
  • DTM4 Connector for CAN and Power, Molex Connector
    for Analogue Inputs

Box Contents:
1 x 15 Button CAN Keypad
1 x DTM4 Mating Connector Kit

1 x Molex Mating Connector Kit
1 x Link Sticker
1 x Keypad Button Insert – Link Logo
