JMF DSM Bottom Mount Exhaust Manifold

 Availability:

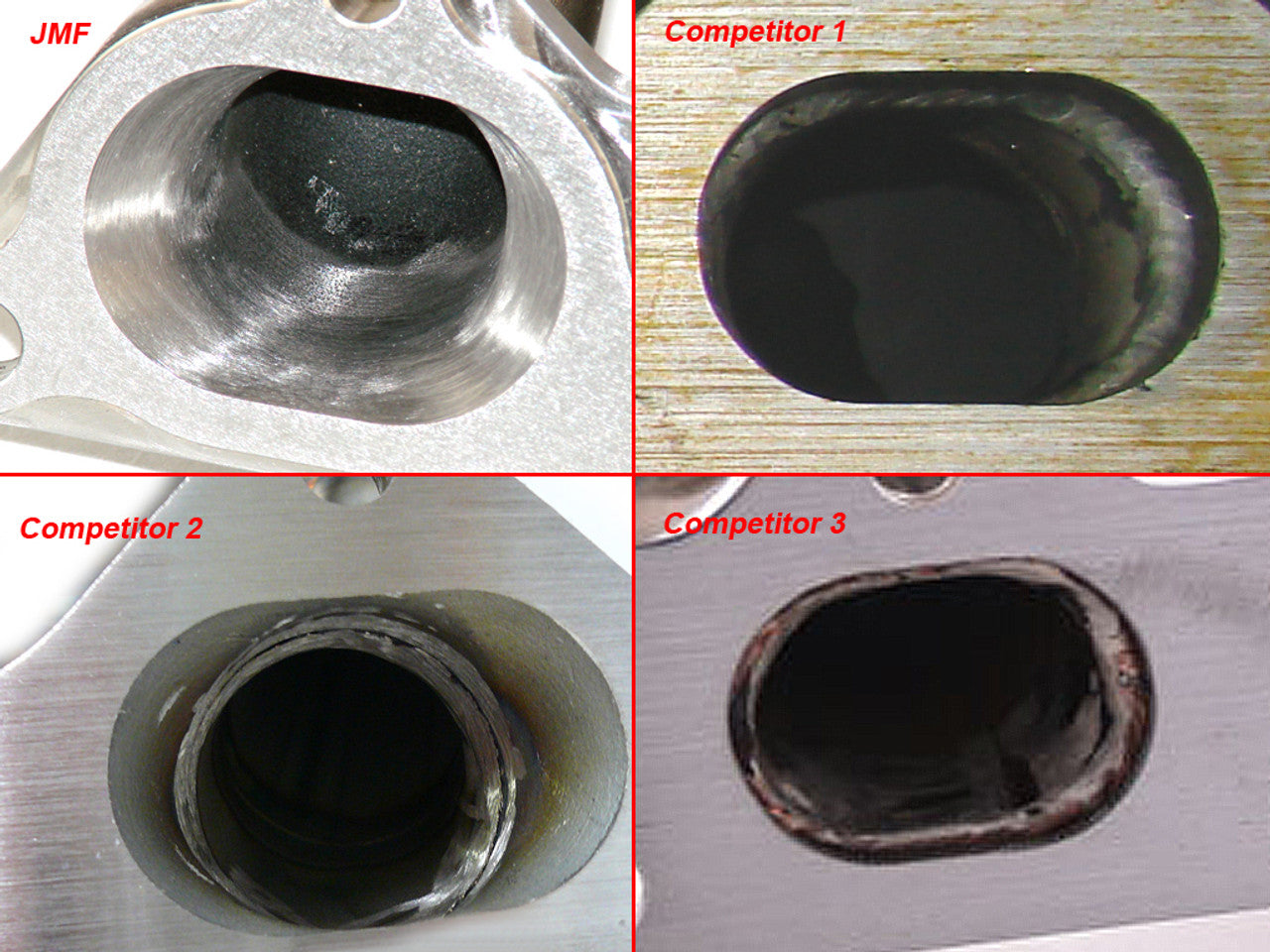

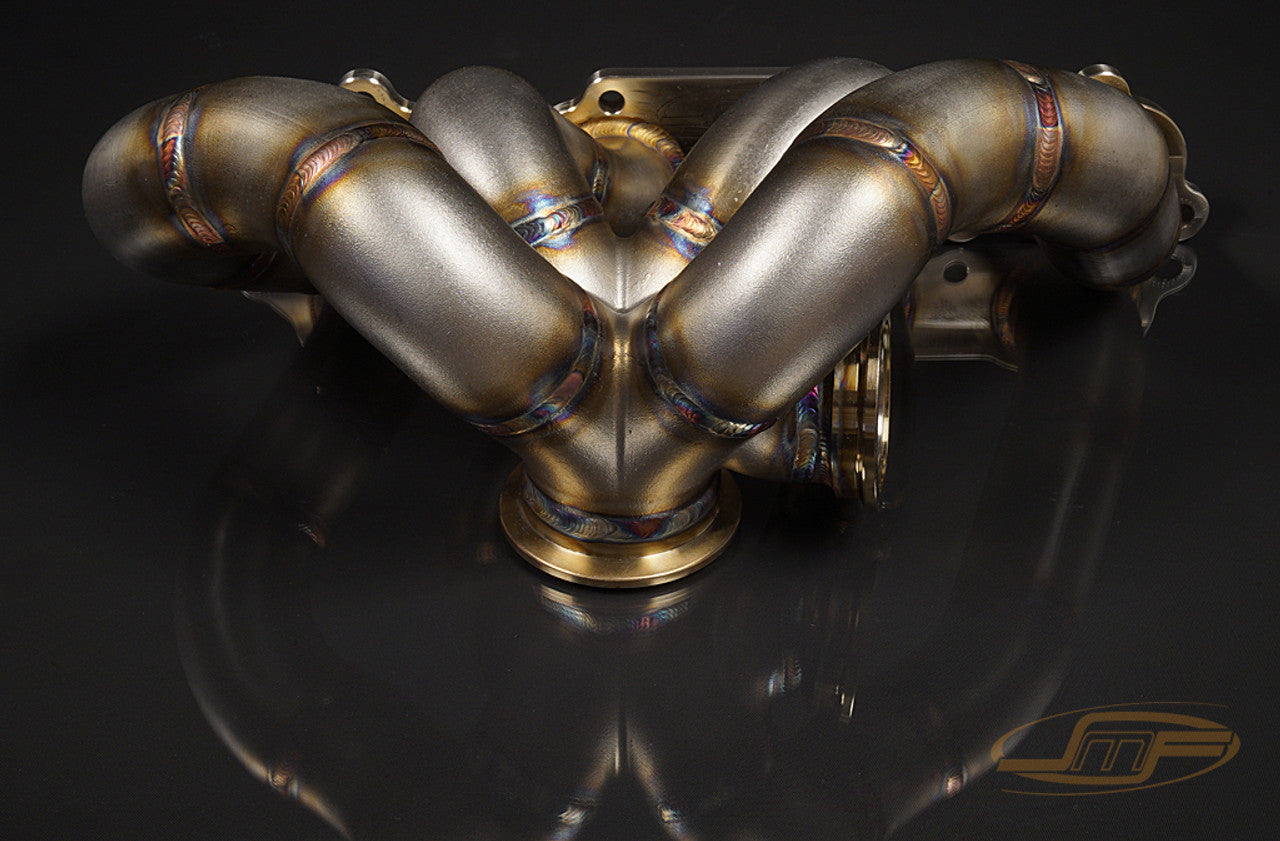

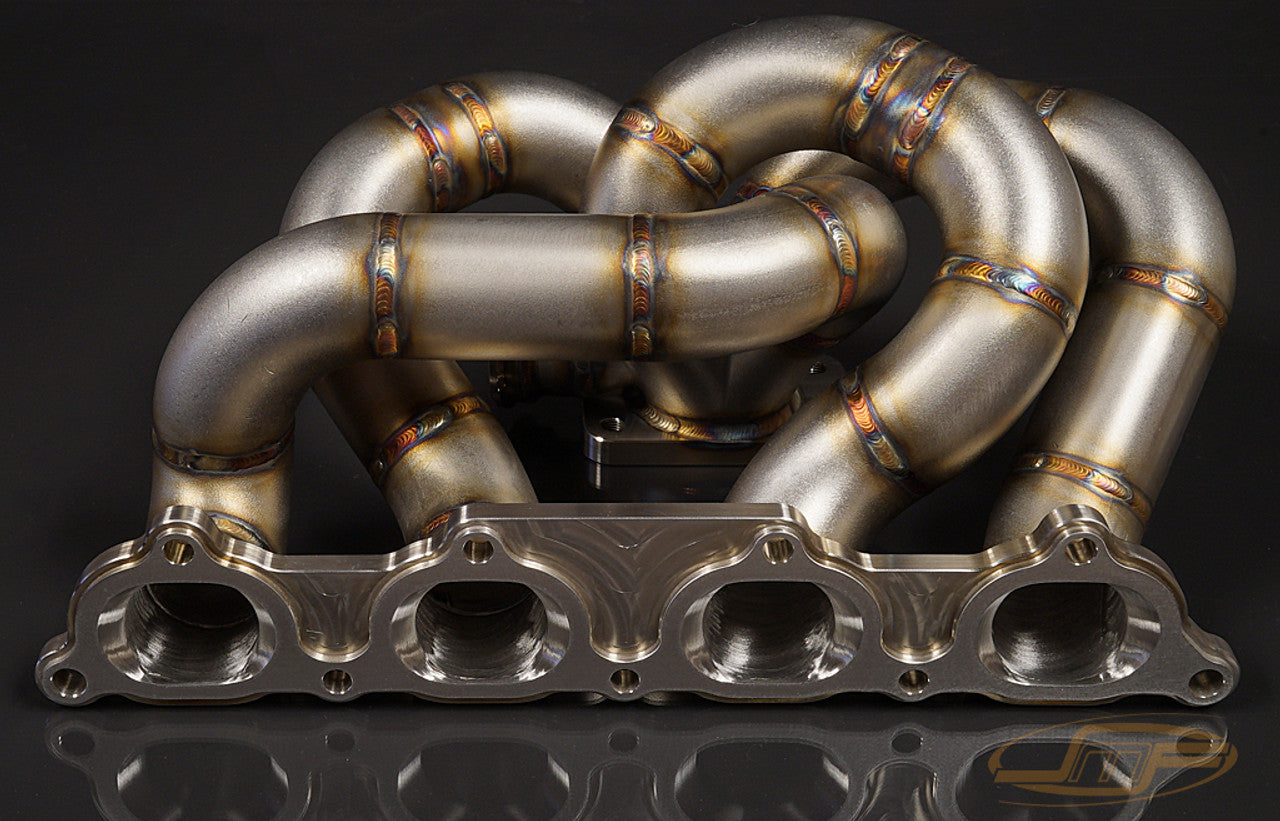

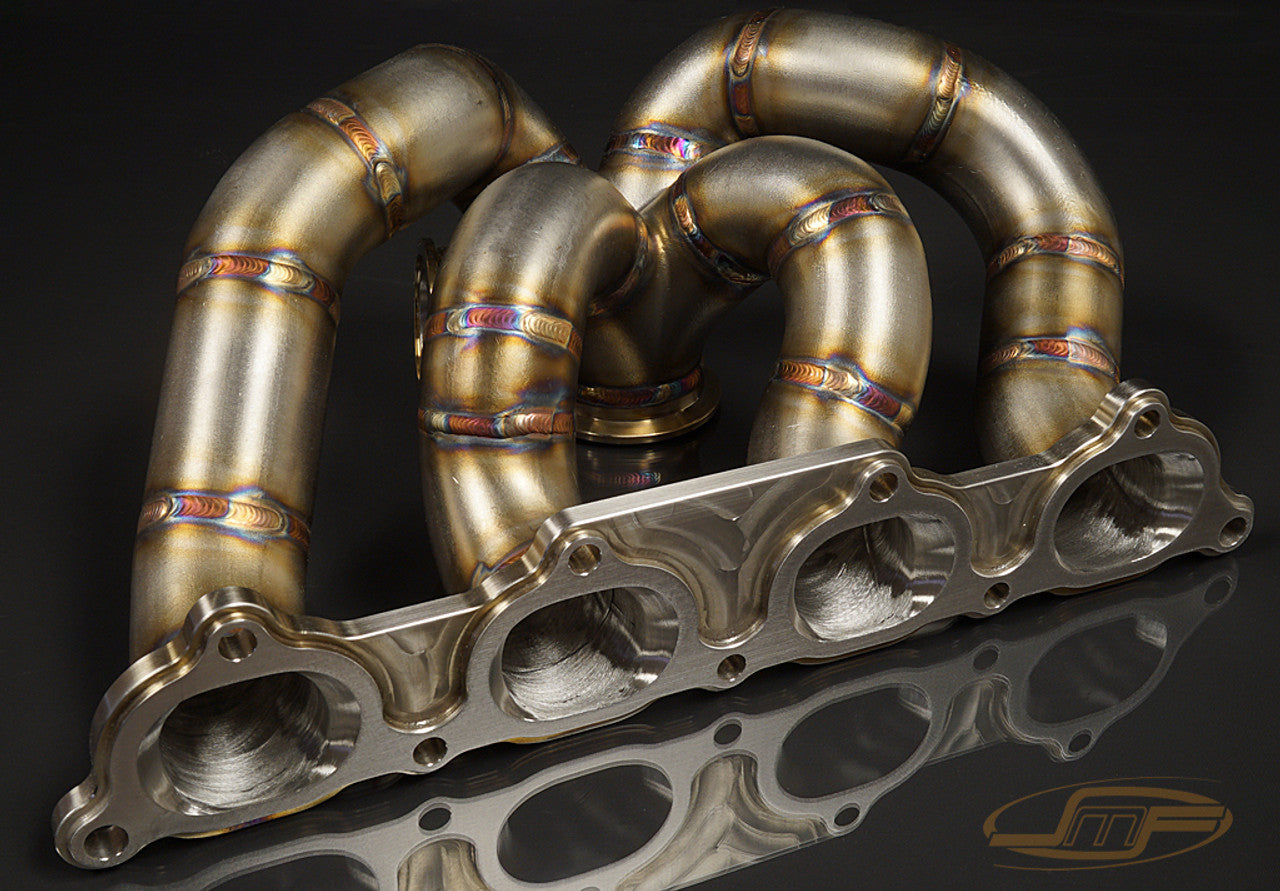

So you wanna run a big turbo on your DSM?  Then we have exactly what you need!  This is our DSM bottom mounted turbo, tubular exhaust manifold. Made from thick walled 304 stainless steel tubing. Featuring multi-pass TIG welded joints and CNC machined 1/2" thick 304 stainless steel flanges. The ports are gasket matched and smoothed to perfection for the best of flow, each flange is surfaced for a leak free seal.  Features a one of a kind cast merge collector for superior flow and durability.

   With this manifold you will still be able to keep your power steering and a full size radiator however slim fans are required and 2G cars will need to install a 1G radiator or similar radiator that places the coolant outlet on the pass. side vs. in the middle.  The manifold can accept up to an S-Cover compressor housing.  If you choose the divided T4 flange option you will need to run 2 external wastegates.   O2 housing and dump tube(s) can be made upon request
