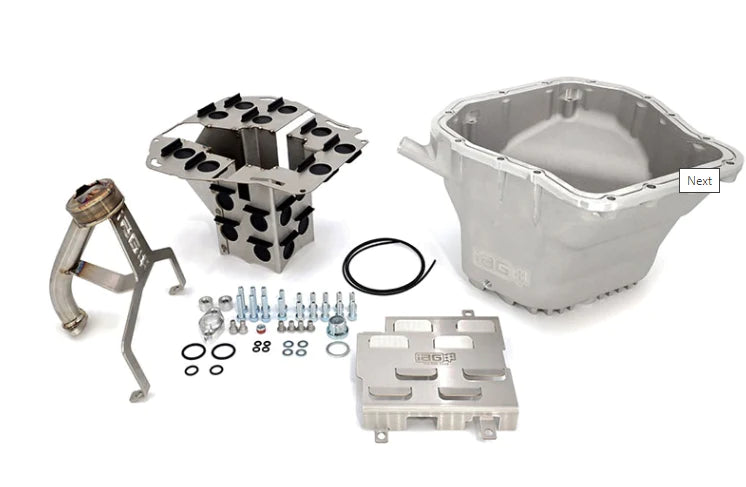

IAG EJ Competition Series Oil Pan Package
IAG EJ Competition Series Oil Pan Package
For WRX, STI, LGT, FXT

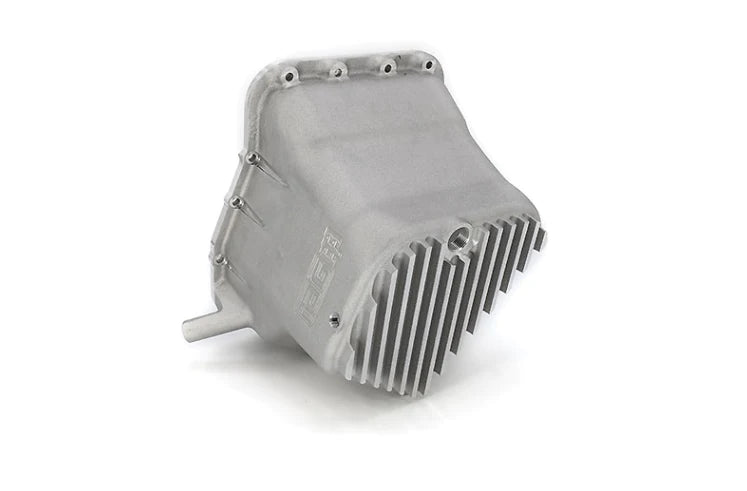

The IAG Competition Series Oil Pan for the Subaru WRX and STI is uniquely designed and CNC machined to suit a wide range of street and track applications. The cast aluminum oil pan was designed with fitment for a larger variety of popular headers in mind, while still increasing oil capacity up to 30% over OEM.

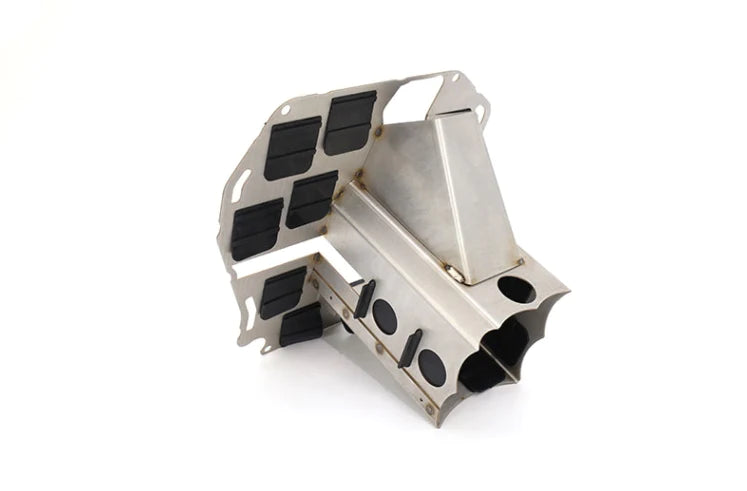

About Competition Series Oil Baffle

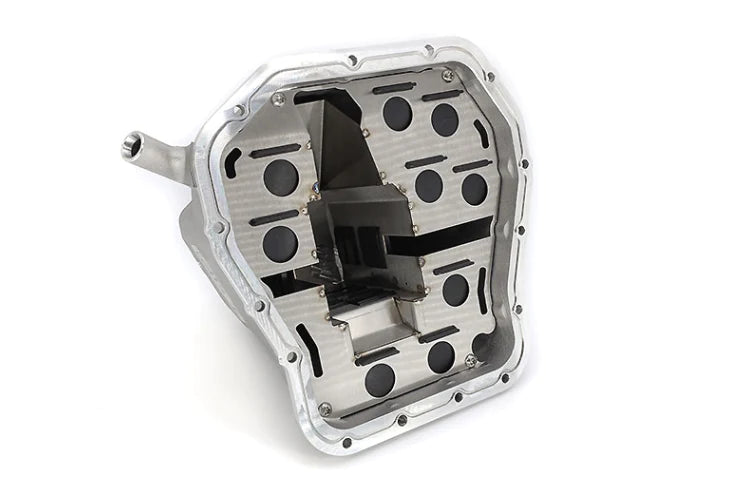

The IAG Competition Series Oil Baffle is designed to limit potential blow-by and prevent oil starvation in your Subaru's WRX / STI EJ engine during high rpm and high g-force driving. The Competition Series Baffle should be used in vehicles that will see track time, however, it is acceptable to run this baffle on the street as well. The Comp Series baffle is configured with Viton one-way flapper valves which hold oil in the area closest to the pickup. Combining the baffle with the louvers in our windage tray, oil is prevented from reentering the upper crankcase area and is directed down into the oil pan to ensure plentiful supply to the oil pickup.

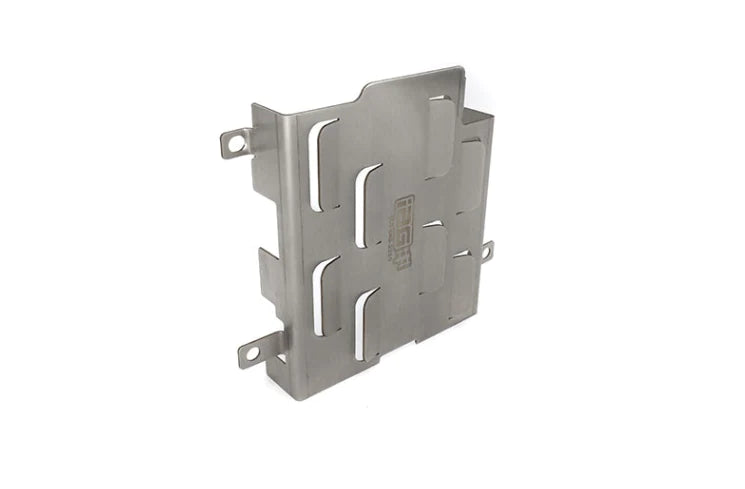

About Windage Tray
The job of the windage tray is to help direct oil from the upper crankcase down into the lower crankcase and oil pan area. Manufactured from stainless steel, precision-formed louvers direct oil downwards and help to prevent oil that is draining from the cylinder heads in the lower crankcase area from sloshing upwards into the path of the crankshaft and connecting rods, thus reducing aeration.

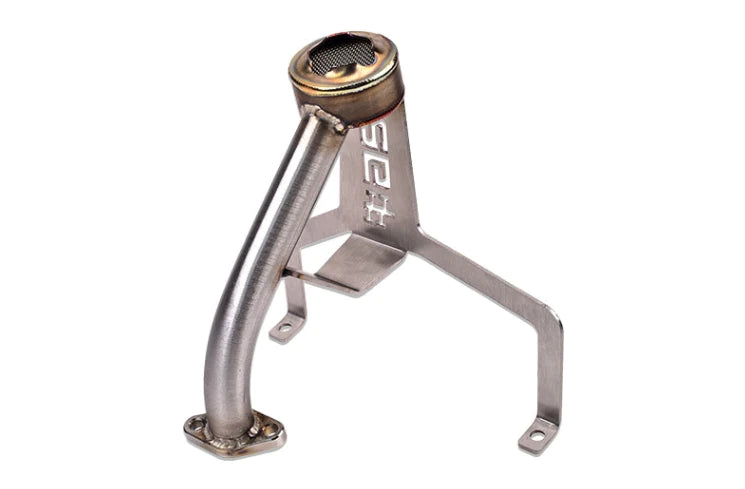

About IAG V2 Oil Pickup:
The IAG Performance Subaru WRX / STI oil pickup is designed to replace the OEM EJ25 oil pickup which is prone to failure. It's a well-known fact that the OEM oil pickups often crack and fail which in most cases destroys your motor from lack of oil pressure. To avoid the cracking failures seen in the OEM oil pickup tubes, the IAG oil pickup is manufactured from heavy-gauge steel tubing that is 2x thicker than OEM. Additionally, it features a flange machined from 3/8" stainless steel to mate with the block, sealed with a Viton O-ring.
Fitment:
Years | Make | Model | Liters | Cylinders | Notes |
02-14 | Subaru | WRX | 2L/2.5L | 4 | |
04-21 | Subaru | WRX | 2L/2.5L | 4 | |
05-09 | Subaru | Legacy | 2L/2.5L | 4 | 09 Spec.B |
04-13 | Subaru | Forester | 2L/2.5L | 4 | XT |
