ACT T2S-S05 Mod Twin 225 XT Sprung Street Clutch Kit WRX STi
ACT T2S-S05 Mod Twin 225 XT Sprung Street Clutch Kit WRX STi
Couldn't load pickup availability
Specs
Specs
- Mod-Twin 225 XT Sprung Street
- Product Weight (lbs.) 28.2
- Torque Capacity (ft/lbs.) 875
- Torque Capacity Over OE 146%
- Disc Material Organic
- Clutch Disc Diameter (Inches) 8.8
- Clutch Disc Diameter (Millimeters) 225
- Input Shaft Diameter (inches) 1
- Pressure Plate Type Xtreme
- Warranty 12 Months
Features
Features
Feel – Soft progressive engagement, light pedal effort, smooth shifting with OE to mild transmission gear noise
Life – Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions
Quality – Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances
Recommended Use - Street or Street/Strip
Designed for high powered AWD street cars, this clutch unites uncompromised pedal feel, durability, engagement quality with very high torque capacity.

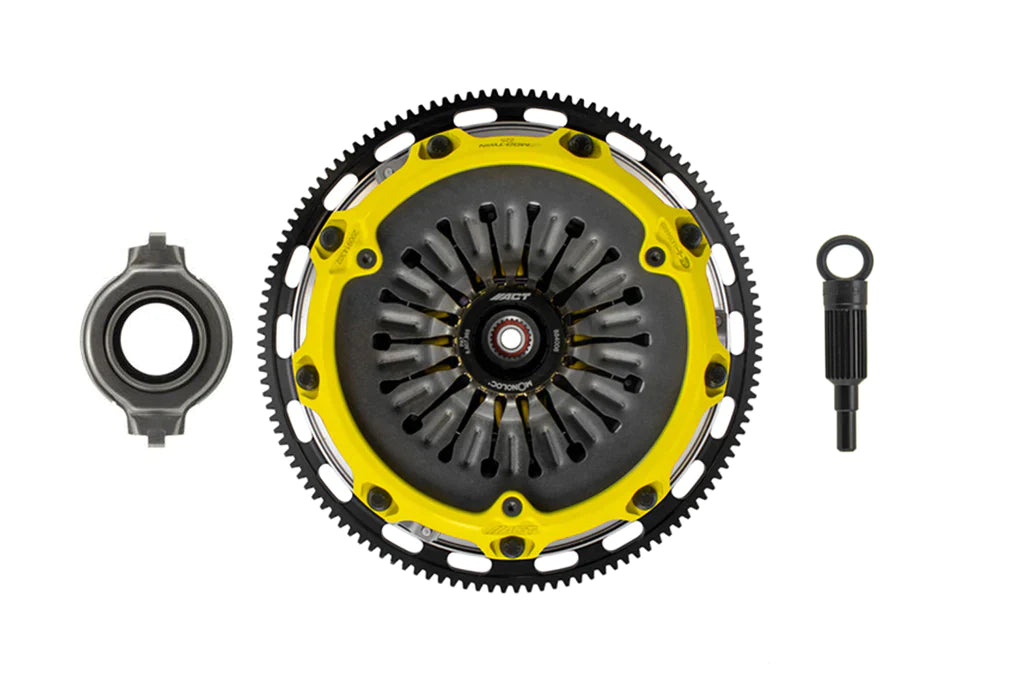

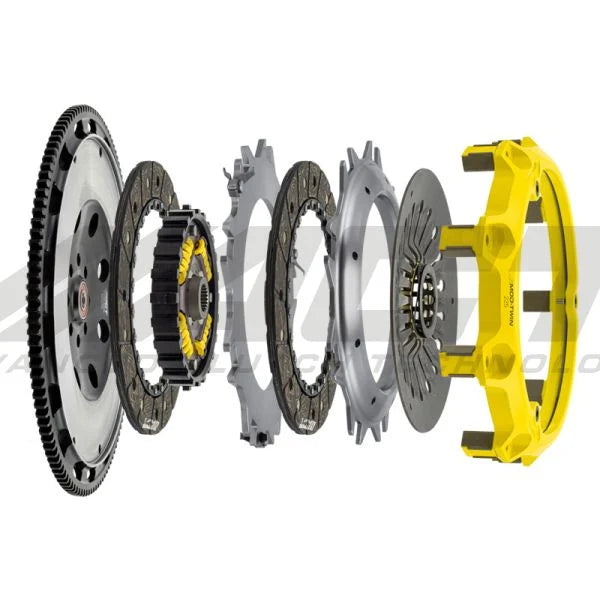

Kit Contents:
Forged aluminum pressure-plate cover
CNC-machined and dynamically balanced flywheel
Diaphragm spring and face
Puck-style ceramic friction plates
Available with sprung or unsprung mono-drive hub assembly
Floater
Patented mono-Loc collar
Release bearing
Alignment tool and pilot bearing (if needed)
Fitment:
| Years | Make | Model | Liter | Cylinder | Notes |
| 04-21 | Subaru | WRX STI | 2.5L | 4 |
