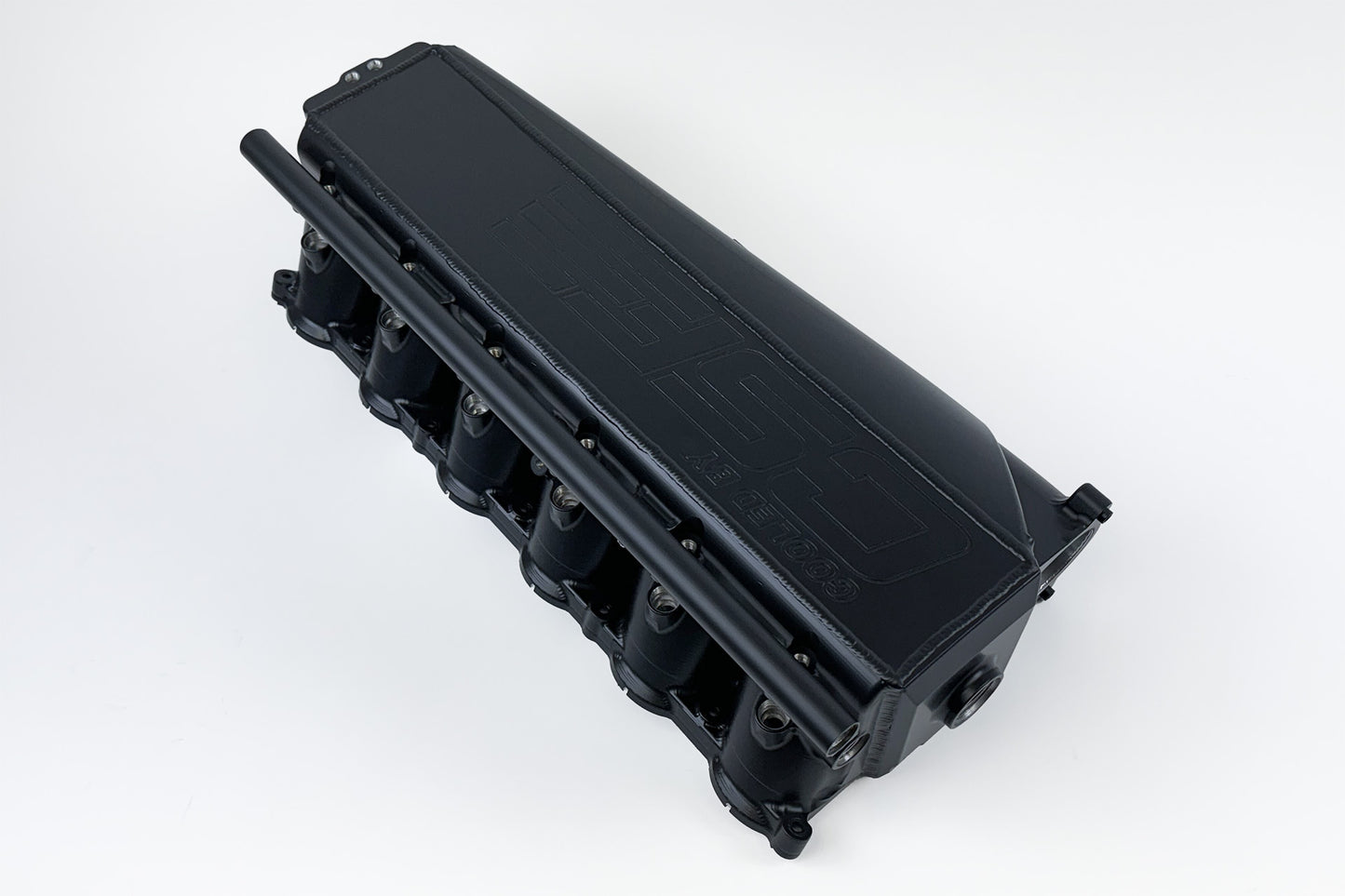

CSF BMW Gen 2 B58 Race X Charge Air Cooler Manifold - Thermal Dispersion Black

Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core, CSF, The Cooling Experts, have been serving the US aftermarket for almost 4 decades. With over 30 million units sold, CSF is your exclusive source for Radiators, Condensers, Intercoolers, Inverter Coolers, Racing Radiators and Pressure Caps.

- 25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200)

- 15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows

- Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding

- Included KIYLEX Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%; Some modifications to install

- Includes Hardware and Installation Kit with Picture Diagrams and Instructions

- Custom Finish (Available in Raw Billet - CSF #8400 or Thermal Black Heat Dispersion Cerakote - CSF #8400B);

- Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia; Core can be setup for dual or single pass:

- The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Includes CNC machined plug for dual-pass configuration

- Designed in SolidWorks Using Computational Fluid Dynamics (CFD); Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core

- Improved slotted mounting holes on throttle body side for easier installation

- Easy Access to Spin-Off Oil Filter for Quick Oil Changes

- Integrated Sensor Pad with Two 1/4" and Three 1/8" NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum

- Included Fuel Rail for Top Feed Port Injection; Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection (Allows for Even Spray Distribution and Control for Maximum Performance)

This product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform
